Intelligence And Information Butyl Coating Machine For Insulating Glass Processing

Jinan Lijiang Automation Equipment Co., Ltd.
Contact Now

Intelligence And Information Butyl Coating Machine For Insulating Glass Processing

Brand Name : LIJIANG

Model Number : LJTB01

Certification : CE

Place of Origin : China

MOQ : Two machines

Price : $20,000 per unit

Payment Terms : L/C, T/T

Supply Ability : 10 units per month

Delivery Time : A week

Packaging Details : Wooden box. container

Max. Glass Size : 2500*2500mm

Samples : LJTB01 , 2500*2500mm

Customization 1 : Customized logo

Customization 2 : Customized packaging

Production Capacity : 47m/min

Power : 5.7kw

Warranty : 1 Year, 1 year

Contact Now

Intelligence And Information Butyl Coating Machine For Insulating Glass Processing

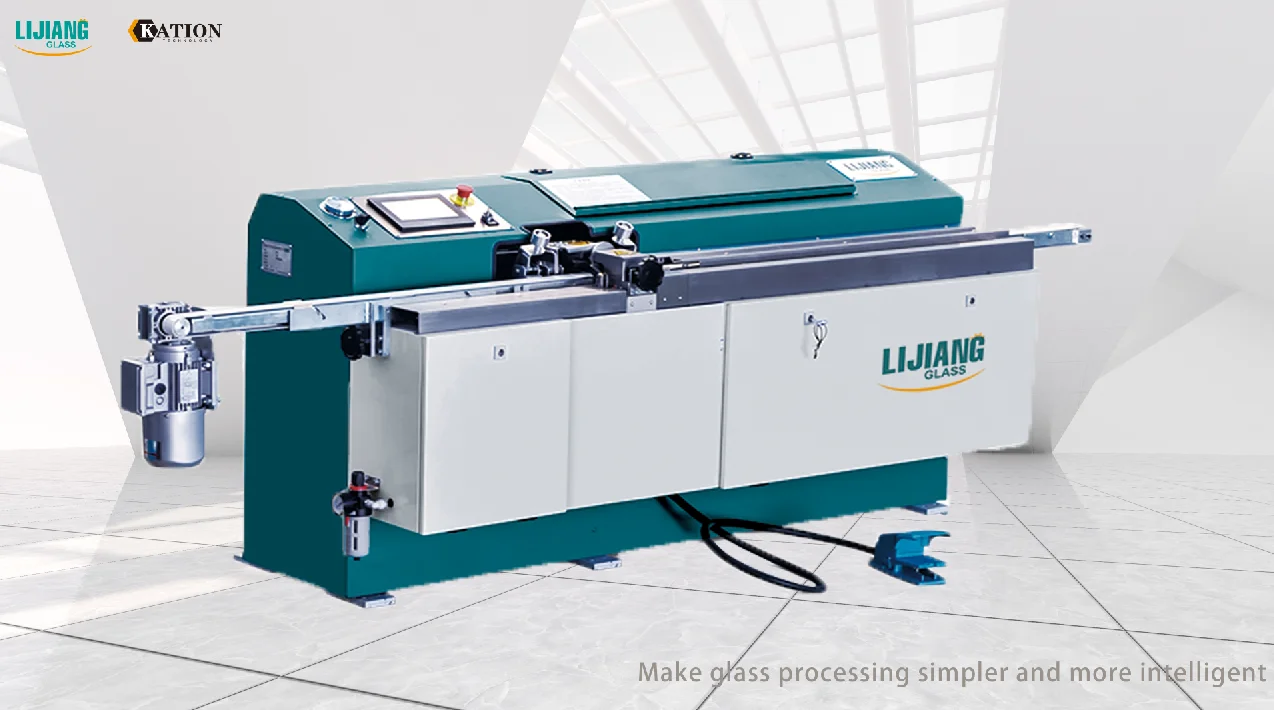

Automatic butyl extruder - LJTB01 new type coating machine

Main feature : •PLC control system, KINCO touch screen interface •Hydraulic system using German brands •Alarm system, reminding adding butyl glue •The sensor can automatically measure the width of frame, the distance of nozzle can be adjustable •Exhaust function •Short preheating time, improve work efficiency •Coating shape frames, the roller device can be selected at will •Fast coating speed, can up to 47m/min •Stable pressure and even coating •Saving glue. The amount of glue on both sides can reach 4g / m •Big glue barrel, 200L. (Optional)
Intelligence And Information Butyl Coating Machine For Insulating Glass Processing
Intelligence And Information Butyl Coating Machine For Insulating Glass Processing

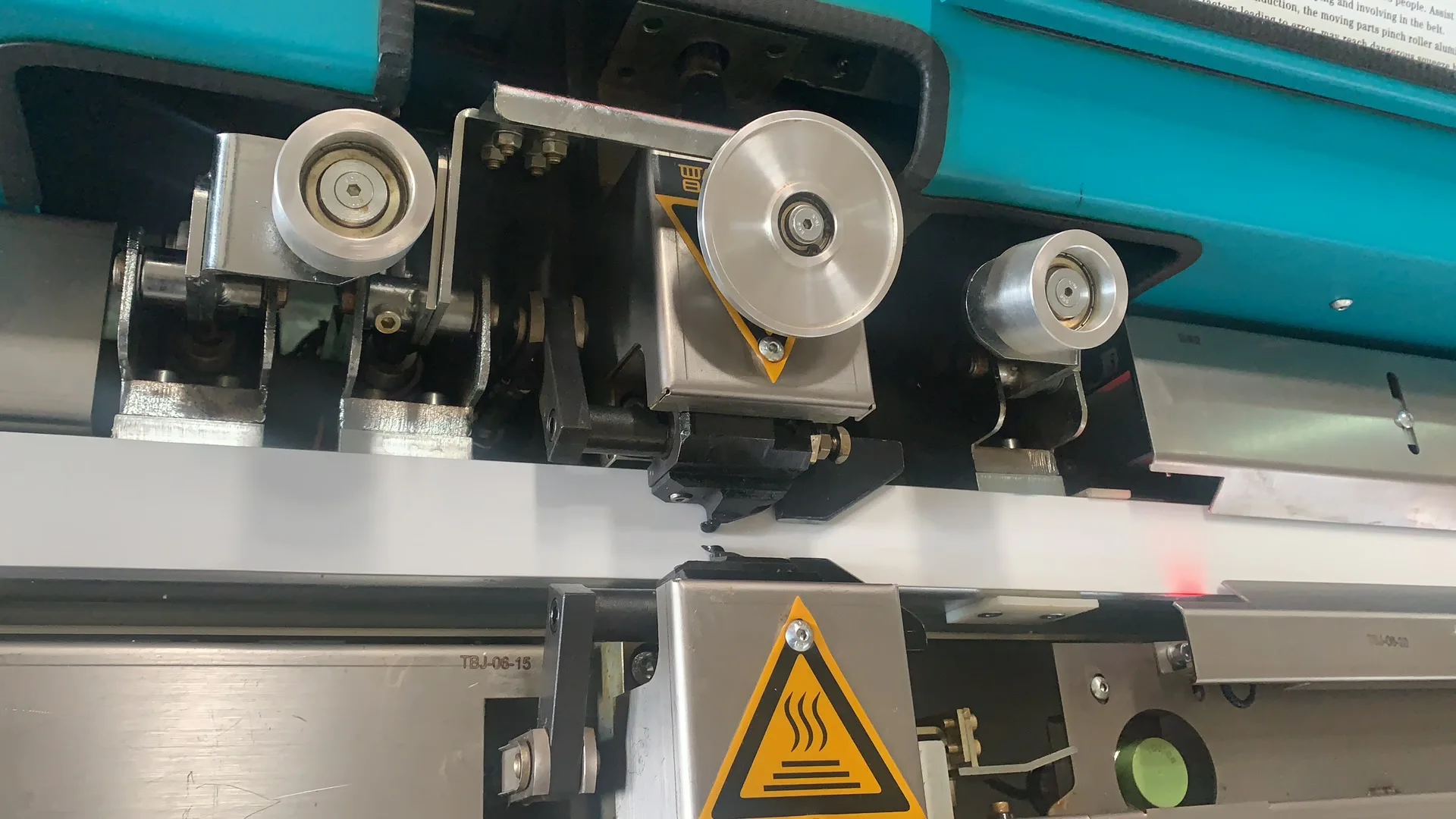

Coating head

with 7kg glue barrel
coating circle shape also
if coating decorative spacers, can up the press wheel
Intelligence And Information Butyl Coating Machine For Insulating Glass Processing

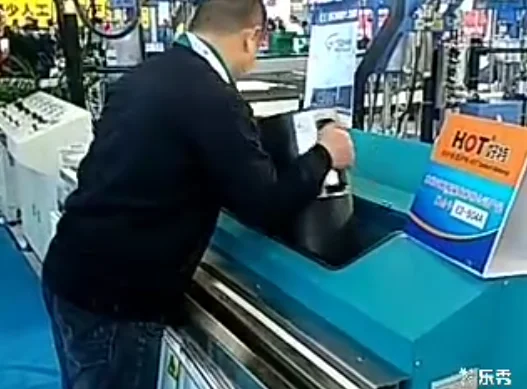

Changing butyl glue

it adopts the new design structure to change butyl glue, it is on the machine, not down the machine
Intelligence And Information Butyl Coating Machine For Insulating Glass Processing

200L big glue barrel

normal glue barrel is 7 kg, but there is another choice for 200L big glue barrel, save time
Intelligence And Information Butyl Coating Machine For Insulating Glass Processing
Squeeze pressure
10-18MPa
Temperature
110~140℃
Glue thickness
0.3-0.5mm
Glue width
3.5mm
Aluminum spacer width
6A - 27A
Speed
5-47m/min
Diameter of butyl cylinder
200mm
Air supply
0.4m³/min
Air pressure
≥0.6MPa
Total power
380V, 5.7KW,50HZ
Dimension
2800×700×900mm(L×W×H)
weight
650kg
Intelligence And Information Butyl Coating Machine For Insulating Glass Processing
Intelligence And Information Butyl Coating Machine For Insulating Glass Processing
Intelligence And Information Butyl Coating Machine For Insulating Glass Processing
Intelligence And Information Butyl Coating Machine For Insulating Glass Processing
Intelligence And Information Butyl Coating Machine For Insulating Glass Processing
Intelligence And Information Butyl Coating Machine For Insulating Glass Processing
Company Overview

Kation-Tech founded in 2009, specializes in R&D, production and sales of Insulating glass machinery and related auxiliary equipment for the glass deep processing industry and the door and window construction industry. Has the professional processing basis of insulating glass machinery, aluminum-plastic windows & doors machinery and the related auxiliary materials, etc. In this way, we provide the most comprehensive glass processing solution and windows & doors solution for domestic and foreign customers well.So far, we have independently produced Insulating Glass Production Line,Insulating Glass Sealing Robot, Spacer Bending Machine , Desiccant Filling Machine, Butyl Extruder Machine,Glass Cutting Machine, its technology and quality have reached the highest leading level in China. Until 2019, we exported glass machines and materials to America, South America, Europe, the Middle East, India and so on, nearly 30 countries and regions. We have established a perfect international business relationship with 10 powerful agents and made an endeavor together to build a famous international brand to the world.

Kation-Tech, with craftsmanship, profession and honesty, wins the future with you together!

JINAN LIJIANG AUTOMATION EQUIPMENT CO.,LTD is our factory. It is an enterprise which integrated glass processing equipment research and development, sales and service into a whole.
