Intelligent High Speed CNC Glass Cutting Line With American Galil Control System

Name: Intelligent High Speed CNC Glass Cutting Line With American Galil Control System
Brand: LIJIANG
Price: 40 USD

Quality Intelligent High Speed CNC Glass Cutting Line With American Galil Control System for sale

Brand Name : LIJIANG

Model Number : LJSCLM2620

Certification : CE

Place of Origin : CHINA

MOQ : 1 set

Price : $40,000 per unit

Payment Terms : L/C, D/A

Supply Ability : 15 units per month

Delivery Time : A week

Packaging Details : Carton or container

Power : 18.5Kw

Weight : 1500kg, 3000kg

Warranty : 1 Year

Key Selling Points : High Productivity

Marketing Type : Ordinary Product

cutting speed : 0-160mm

Contact Now

CNC intelligent automatic high speed Glass Cutting Line with the newest American Galil control system

Intelligent High Speed CNC Glass Cutting Line With American Galil Control System

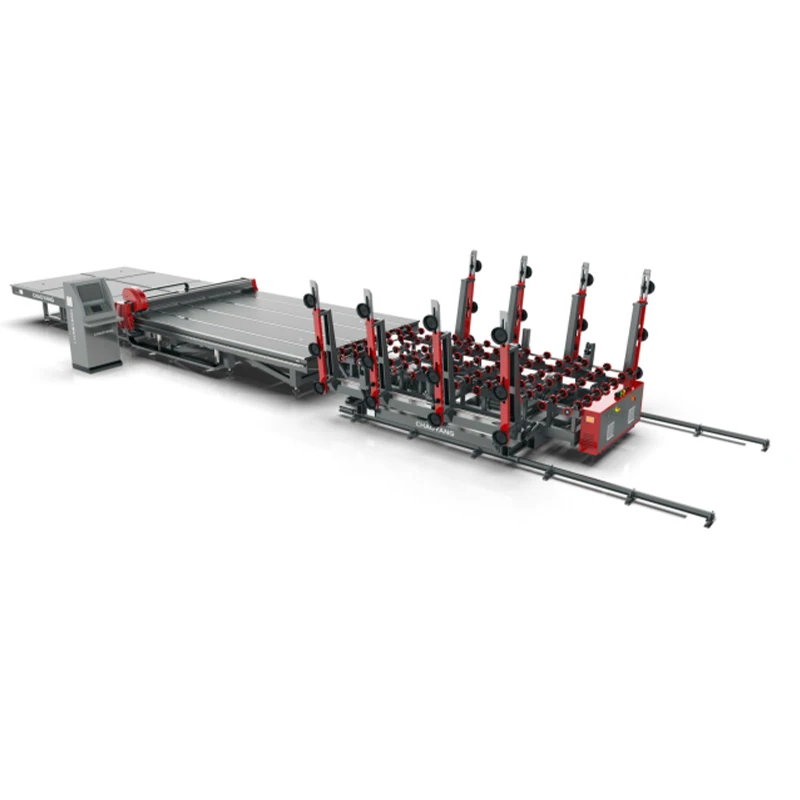

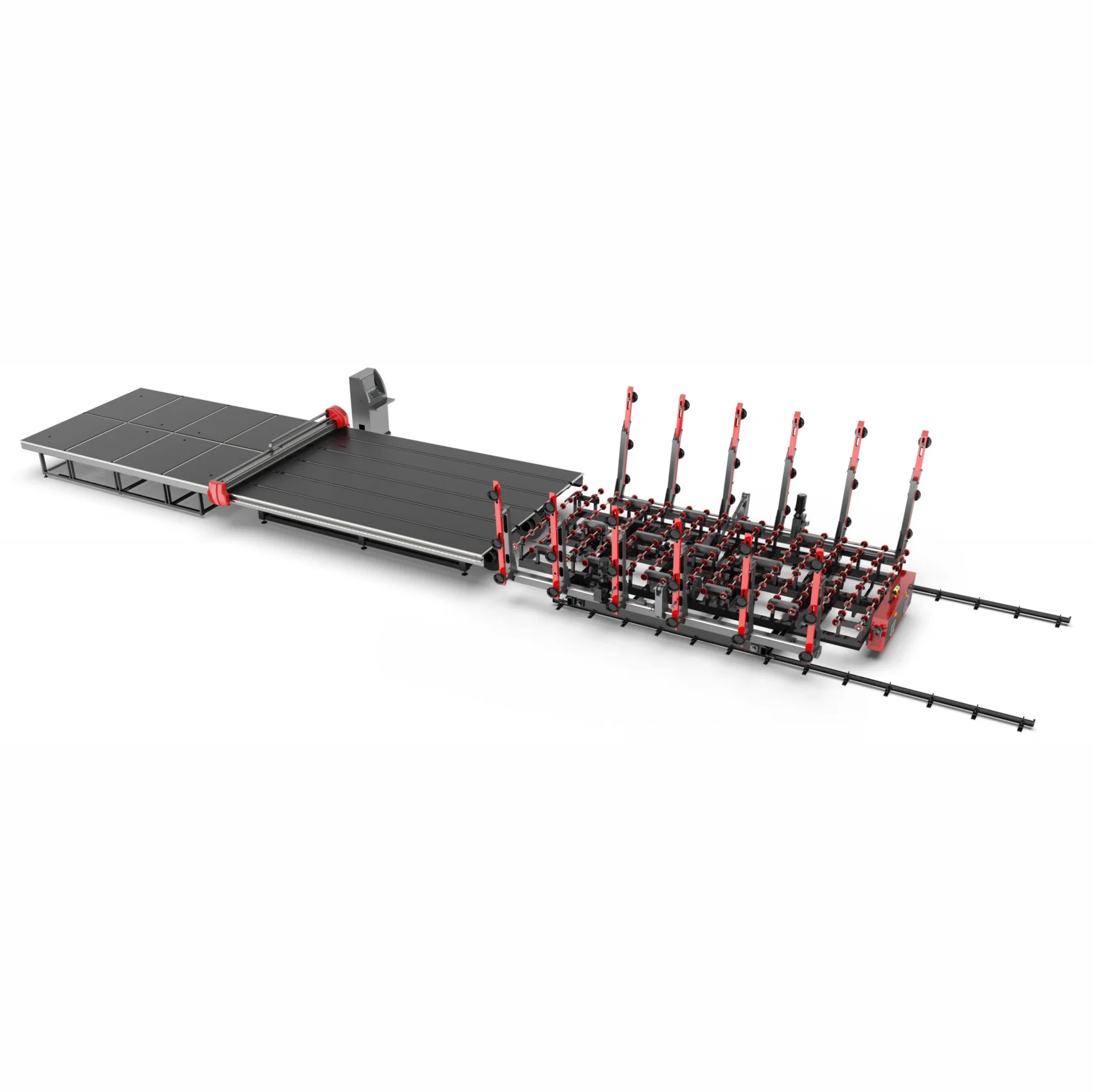

LJSCLM2620 CNC Intelligent Automatic High Speed Glass Cutting Line

LJSCLM2620 CNC Intelligent Automatic High Speed Glass Cutting Line has been comprehensively upgraded by means of introduction of European leading technology, world newest tech and process to eliminate the insufficient performances, incomplete functions and unstable operation from domestic glass loader, moreover,through the precise racks, slide-rails, servo motors and pneumatic elements, it achieves the long-term stable accuracy and fast running with the newest American Galil control system, it features even faster operation, higher safety, higher efficiency, more stability and better accuracy: with the photoelectric positioning,it facilitates the simple and precise operation and prominent labor saving.

Item.	Spec.
Max. glass cutting size	2800*4200mm
Glass thickness	2-255mm
Cutting speed(m/min)	0-200
Accurcy(mm/m)	≤±0.20
Breaking bar(pcs)	1+2
Total power	3P 380V 50Hz
Dimension	Dimensions :14200x3750x900 ±20mm
Maximum glass width	2500mm (effective maximum: 2650mm)
Minimum glass specification	400mm×400mm (limited to single row on left and right sides)
Glass thickness	3mm-25mm (digital display)
Speed range	Glass thickness within 3-25mm Vmax=1-12m/min
Main drive, brush speed regulation method	Frequency control

Above Information is the Specification from Jinan Lijiang Glass Standards.
If customers want to change the Spec., please let us know.

Aluminum alloy assembled structure, no scrap concept, permanent use,high efficiency, energy saving 70% efficiency;
The rest of the sheet metal parts are sprayed with advanced mechanical paint or powder;
The rubber roller is made of vulcanized rubber with stainless steel shaft;
The washing part in contact with water is made of stainless steel;
Cleaning department, wind staff overall lift, the maximum lift: 350mm,easy to clean and maintain;6.Through the precise racks, slide-rails, servo motors and pneumatic elements, it achieves the long-term stable accuracy and fast running;
Adopt the newest American Galil control system, it features even faster operation, higher safety, higher efficiency, more stability and better accuracy.
