Double Glazing Sealant Sealing Robot Glass Machine For Double Glass

Name: Double Glazing Sealant Sealing Robot Glass Machine For Double Glass
Brand: LIJIANG GLASS
Price: 65 USD

Quality Double Glazing Sealant Sealing Robot Glass Machine For Double Glass for sale

Brand Name : LIJIANG GLASS

Model Number : LJTJ2540

Certification : CE

Place of Origin : CHINA

MOQ : 1 set

Price : 65,000 USD per unit

Payment Terms : L/C, T/T

Supply Ability : 10 units per month

Delivery Time : Within 10 working days

Packaging Details : container

Voltage : 380V50HZ

Power : 15KW

Dimension(L*W*H) : 11000*2000*3500mm

Weight : 4500 kg

Contact Now

Vertical Insulating Glass Sealing Robot LJTJ2540

Double Glazing Sealant Sealing Robot Glass Machine For Double Glass

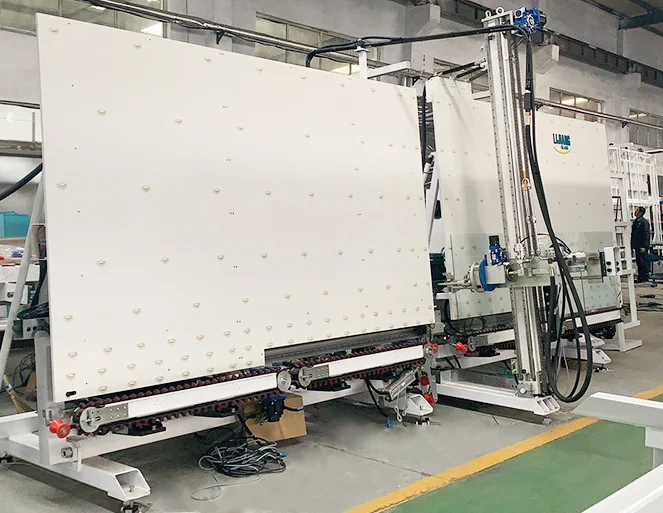

Vertical Insulating Glass Sealing Robot LJTJ2540

•Japan Yaskawa servo system control, 8 axes, 7 sets of servo control system, full automatic and high-efficiency sealing machine •4 sections, can storage glass •Adopt timing belt, smooth transfer and accurate position •Automatically repair glass corners with scraper and roller Automatically measure glass size, glue depth (30mm)

Item.	Spec.
Max. glass size	2500*4000mm
Min. glass size	400*300mm
Glass thickness	12-50mm
Working speed	5-40m/min
Air pressure	≥0.6MPa
Squeeze pressure	32MPa
Voltage power	380V 15kw
Overall dimension	1100020003500mm

•Every auto-function is with manual operation •Can coat double glass •Shape glass with optional edges, step glass, triple glass (Optional)

•One set of booster pump controls two groups of sealants (Optional) •Can use silicone, polysulfide and silicone structural sealants •Glue head is in the front of the machine, which is easy for coating step glass

Product Tags:

Double Glazing Sealant Sealing Robot

Glazing Glass Sealant Sealing Robot

Double Glass Sealant Sealing Robot
